Glazing packers have several vital functions:

1. Glass Support and Weight Distribution: They bear the weight of the glass unit and distribute it evenly onto the uPVC frame. Without them, the glass would sit directly on the frame, leading to stress points, potential cracking, and premature sealant failure.

2. “Toe and Heeling”: This is a fundamental glazing technique, especially for opening sashes (casement or tilt-and-turn). Packers are strategically placed at the bottom (toe) and top (heel) corners (diagonally opposite) to prevent the sash from “dropping” or “sagging” over time. This keeps the sash square and ensures smooth operation of hinges and locks.

3. Maintaining Correct Clearances: They ensure a consistent gap between the edge of the glass and the inside of the uPVC frame. This space is essential for:

   • Allowing the glass unit to “breathe” and avoid direct contact with the frame, which can cause thermal stress or damage.

   • Providing space for proper drainage within the glazing rebate.

   • Allowing for expansion and contraction of materials due to temperature changes.

4. Glass Alignment and Squaring: Packers are used to perfectly align the glass unit within the frame, ensuring it is square and plumb.

5. Preventing Seal Failure: By keeping the glass off the bottom of the frame and allowing proper drainage, packers prevent the sealed unit’s edge from sitting in collected water, which is a common cause of double-glazing seal failure (leading to condensation between the panes).

6. Frame Stability: They help prevent the uPVC frame profiles themselves from deforming or bowing under the weight of the glass.

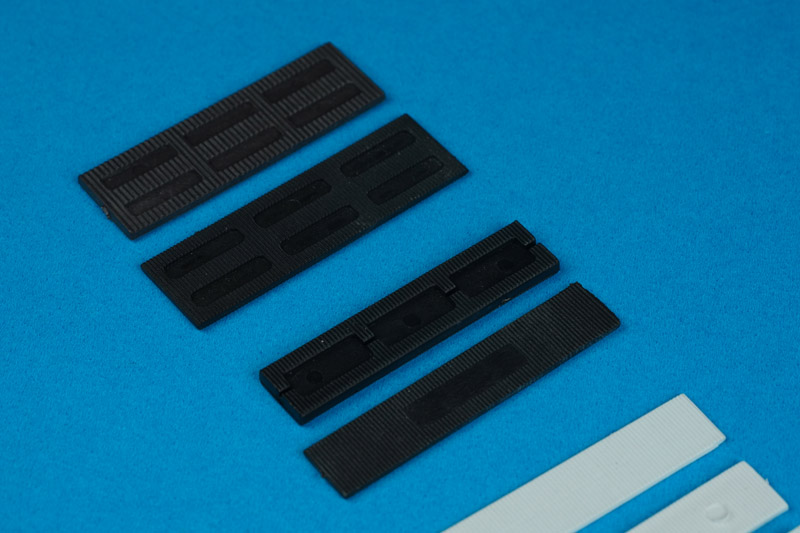

Characteristics and Types of uPVC Glazing Packers:

• • Material: Almost exclusively made from durable, rigid plastic, typically polypropylene (PP), which is non-corrosive and resistant to moisture.

  • Shapes:

    • Flat/Rectangular Packers: The most common type, used to raise the glass to the desired height.

    • Horseshoe Packers (U-shaped): Designed with an opening, allowing them to be placed around screws, bolts, or other fixings in the frame.

    • Wedge Packers: Tapered packers used for fine adjustments and to ensure a tight fit.

    • Bridge Packers: Designed with channels or grooves to allow for continuous drainage or ventilation around the glass unit, even when the packer is in place.

  • Dimensions (Crucial): Packers come in various widths and thicknesses.

    • Width: Must match the thickness of the glazing unit (e.g., 24mm, 28mm, 32mm for double-glazed units).

    • Thickness: Ranging from 1mm up to 6mm or more, often color-coded for easy identification (e.g., 1mm = green, 2mm = black, 3mm = white, 4mm = grey, 5mm = blue, 6mm = red in some systems).

    • Length: Commonly around 75mm or 100mm, to provide sufficient load-bearing area.
